4K30 3X3 Video Wall Processor

$6,799.00

 Model : DVI-PROWALL-9X
Add to Wishlist

Description

Overview

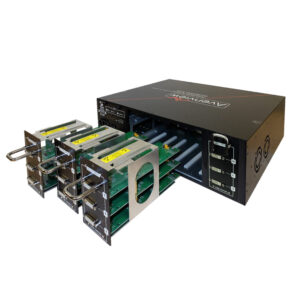

The DVI-PROWALL-9X nine display 4K Video Wall Processor was developed to meet and accommodate video resolution up to 1080p. This unit can support up to 12 DVI/HDMI outputs to expand the spectrum of video wall applications, because of its modular add-on card design concept, users can therefore modify the number of output ports based on different scenarios. Utilizing the same chassis for 9 and 12 video processing the bandwidth of the video can be controlled by any PC/laptop either via Ethernet or RS232 control. These control modules and control software has been revised for quick and easy setup within any environment. The DVI-PROWALL-9X allows you to input 2 DVI/HDMI – supports up to 1080p and the VGA/Component port supports up to WUXGA (1920×1200).

Features

  • Up to 12 DVI outputs from 640×480 to 1920×1080, 1920×1200;
  • Supports HDMI input resolution up to 1080p/WUXGA;
  • Supports VGA and Component input format from 640×480 to 1920×1200, interfaced or progressive;
  • PIP, side-by-side (PAP), full screen modes and adjustable size and position through software;
  • Resize, position, flip, zoom output video;
  • Each DVI output has and independent controllable display area;
  • User-selectable output settings, up to Full HD 1080p, 1920×1200;
  • Software control through RS-232 and Ethernet;
  • PCIE-interface add-on card design;
  • Perfectly as a video screen splitter, a video converter and a video switcher;
  • HDCP compliant;
  • Supports input rotation;
  • 2.5 RU size.

Technical Specifications

ITEM

DESCRIPTION

UNIT

DVI-PROWALL-9X

Unit Description

9 Display Video Wall Processor (VideoWall Controller)

Video Bandwidth

DVI Single Link – 4.95Gbps

HDMI[2.25G to 6.75Gbps]

Component [30MHz],VGA

Supported Resolutions

Up to 3840×2160 @ 24Hz and 4096×2160 @ 24Hz

Audio Support

No

Control

RS-232 / Ethernet

Embedded Video Mixer

Yes

Ability to Cascade

Yes (Upto 4 units 16 DVI Output Displays)

Input TMDS Signal

1.2 Volts (peak û peak)

ESD Protection

Human body model –  15kV (air gap discharge) & ±8kV (contact discharge

Input

1x HDMI/DVI
1x HDMI/VGA/Component

Output

9 x DVI-D/HDMI

DVI Connector Type

DVI-D [29-pin female, digital only]

RJ45 Connector

WE/SS 8P8C with 2 LED indicators

Enclosure

Metal case

Dimensions

438mm x 438mm x 89mm [17.25″ x 17.25″ x 3.5″]

Weight

30 lbs

Fixedness

Rack-mount with ears and Wall hanging holes

Power Supply

AC Power 100-240V

Power Consumption

60 W (max)

Operating Temperature

0~40°C [32~104°F]

Storage Temperature

-20~60°C [-4~140°F]

Relative Humidity

20~90% RH [no condensation]

Package Contents

  • 1 x DVI-PROWALL-9X
  • 1 x IR REMOTE
  • 1 x POWER CORD
  • 1 x INSTALLATION SOFTWARE
  • 1 x RIGHT / LEFT EAR RACK SETS
  • 1 x USER MANUAL








Software

Avenview 4 Port User Guide Avenview DVI-PROWALL-9X Control Software V 5.0 (January 2017)

FAQ Warranty & RMA Product Registration Avenview Tech Support

Additional information

Weight 13.60 kg
Dimensions 43.8 × 43.8 × 8.9 cm
