Overview

This 4 x1 multiviewer Scaler was developed for the purpose of supporting higher output resolution (4K@30) for multiple sources
on a single screen.
This HDmI device can accept 4 HDmI input digital sources and then combine (4) four video signals onto a single HDmI UHD
or HD monitor The user can easily manage each input via the supplied Control Software and create any layout and position
of any of the 4 (four) Inputs on a single monitor. This device supports full range of input video resolutions up to
WuXGA@60 (RB) or full HD1080p and audio RCA breakout supported for external audio distribution systems. Audio
channels can be selected to playback with input or can be muted.

Fast Switching – This device can input any 4 HDmI input digital sources and then combine, (4) four video signals onto a single
HDmI HD monitor. The user will benefit with from its processing power to switch between the 8 user defined function via IR
Remote, Ethernet or Rs232.

Crop – This device can Crop any 4 HDmI input digital sources to remove black bars and then combine, (4) four video signals
onto a single HDmI HD monitor. This device can be configured using the supplied Control software via Ethernet or Rs232 to
set the desired layout on the connected screens.

PIP,PAP, Overlay – This device can input any 4 HDmI digital sources and then combine, (4) four video signals onto a
single HDmI HD monitor, which the user can select picture In picture (pIp) , picture Aside picture (pAp) or overlay with
the supplied Control Software via Ethernet or Rs232 to set the desired layout configuration.

Window Scale and Position – The user can easily change the individual channel size and choose different position and
layout on the single monitor with the Control Software via Ethernet or Rs232 to set the desired layout configuration.

Scalable Rotation (90 & -90) – The user can easily Rotate/Scale only a single input/window image 90 left and right. This
device can be configured with the Control Software, IR Remote, Ethernet, Rs232 or front panel buttons .

Features

• Fast switching between input channels and combined multiple images on single HD monitor;
• Crop the (4) four HDMI Input Channels;
• Supports pIp, pAp and multi-windows layout configurations;
• Single Input Rotation (90? left & right ) functions;
• 8 preset Hot keys with 4 Custom layouts and 4 Full screen layouts within the supplied control software;
• 8 Custom saved layout buttons via the IR Remote;
• Input resolution support full range of video resolutions up to WuXGA@60 (RB) or full HD1080p;
• Output resolution support Full HD or upscale to 4K@30 (3840×2160);
• Audio dembedded via RCA Left and Right audio connectors
• RS232 port for Service mode and firmware upgrade;
• Supports RS-232,Ethernet, IR Remote and front panel buttons;
• Factory Reset;

Technical Specifications

ITEM

DESCRIPTION

UNIT

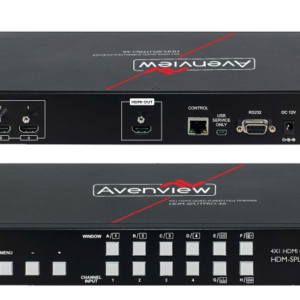

HDM-SPLITPRO-4K

UNIT DESCRIPTION

4×1 HDMI Quad multiviewer with Rotation, 4K support on output

HDCP COMPLIANCE

Yes

VIDEO BANDWIDTH

Input: DVI (Single-link 4.95Gbps) HDMI (6.75Gbps) / Output: HDMI (10.2Gbps)

HDMI INPUT CABLE
DISTANCE

(10.2Gbps) up to 10m/1080p@12 bits

HDMI OUTPUT CABLE
DISTANCE

Up to 10m/1080p@8 bits /4K@30 UHD(3840×2160)

INPUT SUPPORTED RESOLUTIONS

PC -VGA, XGA (1024 x 768), SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200)
480i/720p/1080i/1080p@60

AUDIO SUPPORT

LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD

INPUT

4 x HDMI19 Pin Female type connector

1 x RJ45/RS-232

OUTPUT

1 x HDMI 19 Pin Female type connector

DIP SWITCH

Single DIP switch

RJ45 CONNECTOR

WE/SS 8P8C with 2 LED indicators

SWITCHING SPEED

±8 kV (air-gap discharge)
±4 kV (contact discharge)

WEIGHT

2.9 lbs

DIMENSIONS (L X W X H)

12.5″ x 6.8″ x 1.7″

POWER SUPPLY

12V/5A DC (US/EU standards, CE/FCC/UL certified)

POWER CONSUMPTION

5W

ENVIRONMENTAL

OPERATING TEMPERATURE

32~104 F (0~40 C)

STORAGE TEMPERATURE

-4~140 F (-20~60 C)

RELATIVE HUMIDITY

20~90% RH (no condensation)
